Viewport, gizmo & view modes

The viewport is the editor’s 3D workspace, rendered with the real engine renderer (packages/editor/src/editor-viewport.ts).

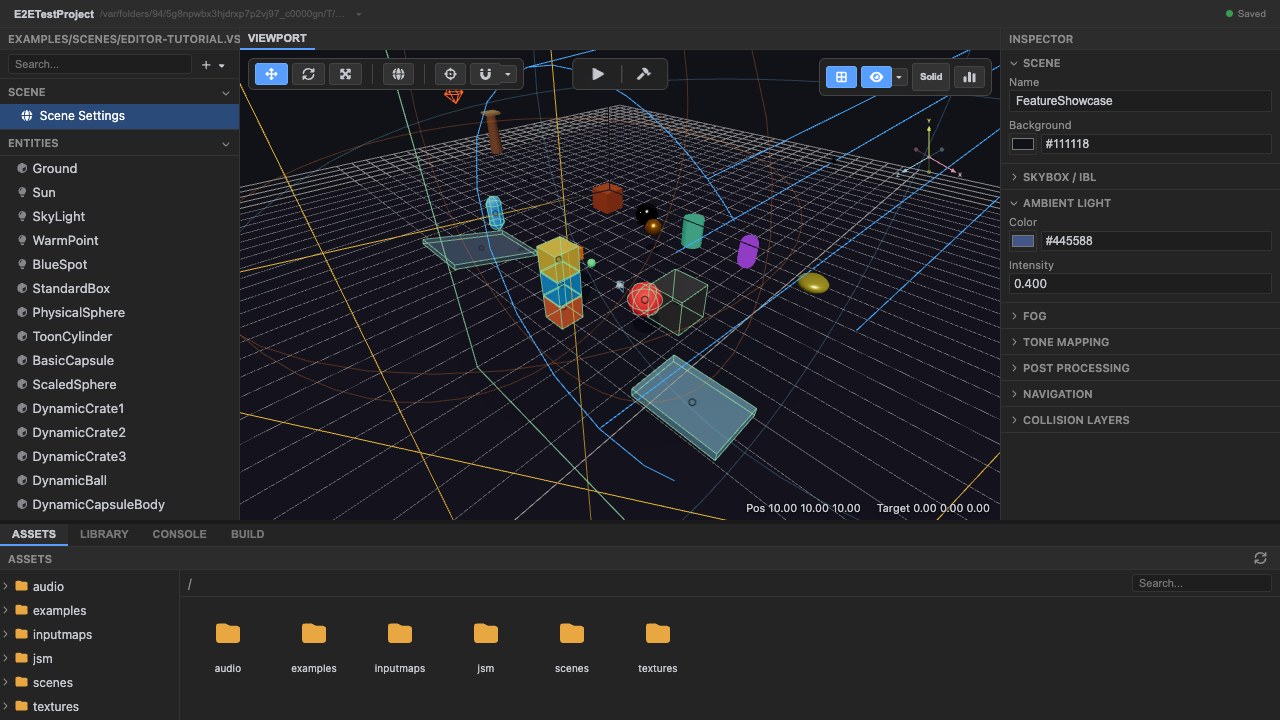

The viewport renders with the engine renderer.

Navigation

• Orbit / pan / zoom with the mouse (OrbitControls): right-drag to orbit, middle-drag to pan, scroll to zoom.
• View presets on the numpad (top / front / right / perspective) — these snap the camera instantly.
• The orientation gizmo (view cube) in the corner shows the current orientation and is clickable, with an animated transition to the clicked face.
• Fly camera — right-mouse + WASD for free movement.
• Select by clicking (raycast); marquee-select by dragging on empty space.

Transform gizmo

Select an entity and transform it (TransformControls):

• Translate (W) / Rotate (E) / Scale (R).
• World / Local space toggle.
• Snapping: grid snap (translate/rotate/scale increments), surface snap (drop onto geometry), and vertex snap (to the nearest vertex).
• Pivot modes for multi-selection: active-element, median-point, individual-origins.

View modes & overlays

From the toolbar / store (packages/editor/src/editor-store.ts):

• Shading: solid, wireframe, unlit (editor-only overrides — they don’t change scene data).
• Grid, helpers (lights, cameras, colliders, audio, splines, navmesh), and a stats overlay (FPS, draw calls).

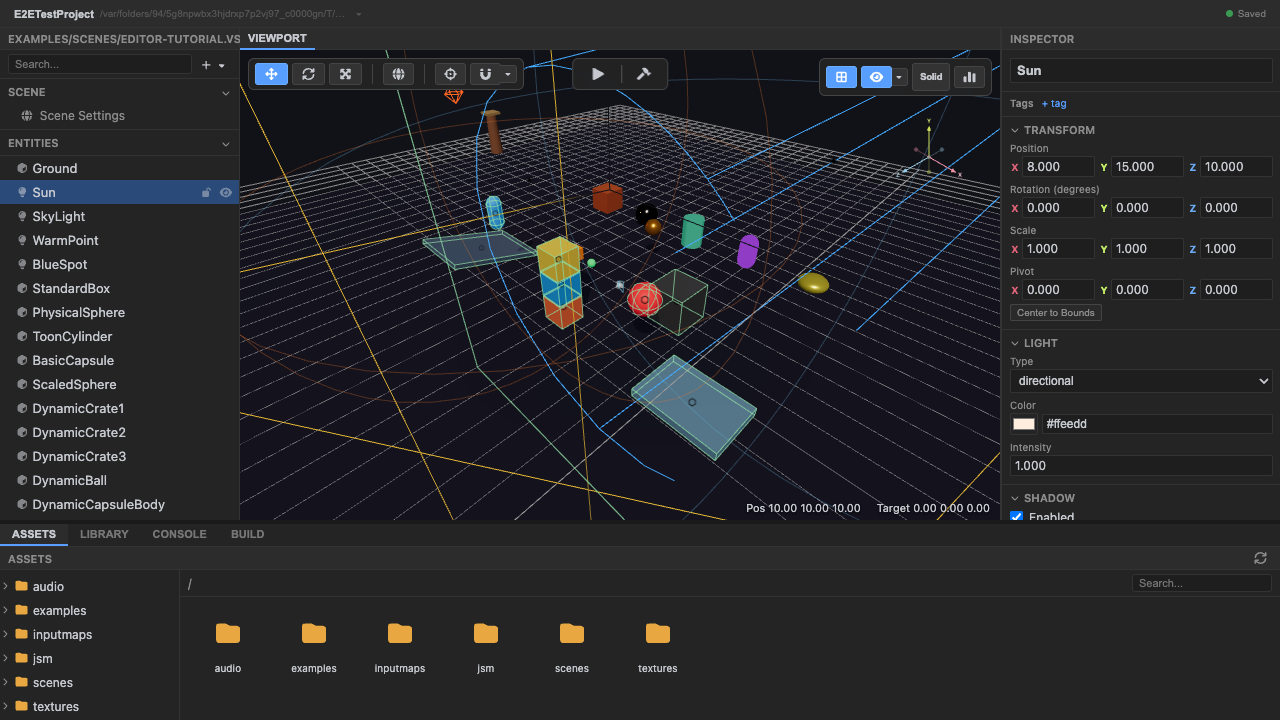

Wireframe shading — an editor-only view override.

Snapping speeds up blockouts

Hold the snap modifier while dragging to lay out a level on a clean grid; switch to surface snap to scatter props onto terrain.

See also

• Hierarchy & inspector — select and edit entities.
• Load a scene & run it — the guided first lesson.
• Rendering — what the viewport renders.
