Load a scene, select entities, and run it

tutorial lesson Beginner ⏱ 10 min vgai 0.1.0

Prerequisites: Installed vgai and run the editor (Get Started)

What you'll learn

  • Open a scene file in the editor
  • Select entities from the hierarchy and see them in the viewport
  • Switch between solid, wireframe, and unlit shading
  • Enter and exit play mode to run the real game loop

What you'll build: A guided tour of the editor-tutorial scene, ending with the scene running live.

Walkthrough — Load a scene, select entities, and run it · generated by site/media/lessons/editor-first-scene.lesson.ts (7 steps)

The editor renders your scene with the real engine renderer and runs the real game loop in play mode — so what you see is what ships. In this lesson you’ll open a scene, explore it, change how it’s drawn, and run it. It uses the editor-tutorial scene that comes with the template (an all-systems showcase: meshes, lights, physics, particles).

Steps

Section titled “Steps”

  1. Open the editor-tutorial scene. Start the dev server on the editor-tutorial example project (VGAI_PROJECT=examples/editor-tutorial npm run dev) — the editor opens at http://localhost:5173 with its scene loaded. The viewport shows the lit scene with a ground plane.

    The editor with the editor-tutorial scene loaded in the viewport
    The loaded scene, rendered by the engine renderer.

  2. Select the Ground entity in the hierarchy. The left panel lists every entity. Click Ground — it highlights in the viewport and its properties appear in the inspector. Each hierarchy row is a Three.js Object3D; selecting it is selecting the entity itself.

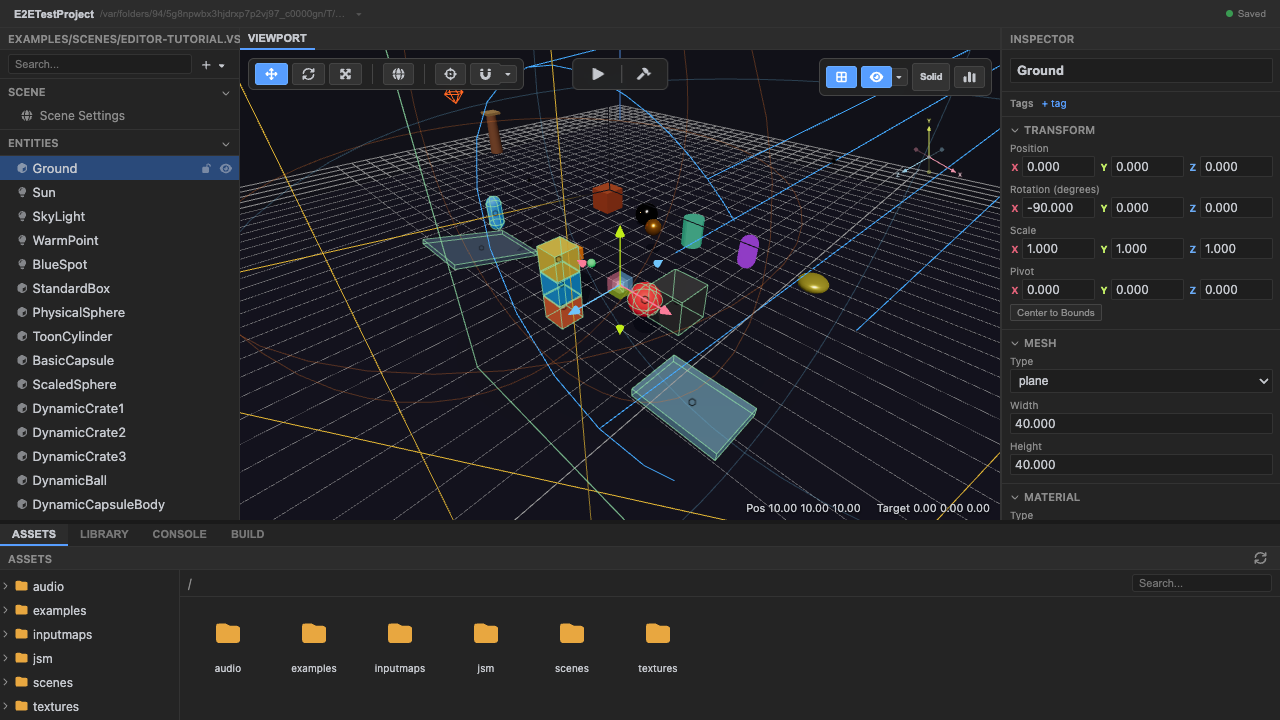

    The Ground entity selected in the hierarchy and viewport
    Selecting Ground highlights it and populates the inspector.

  3. Select the Sun light entity. Click Sun in the hierarchy. The inspector now shows the Light section (type, color, intensity) instead of a mesh — the inspector adapts to what the selected entity has.

    The Sun light selected, showing the Light inspector section
    The inspector adapts per entity — a light shows light properties.

  4. Switch the viewport to Wireframe shading. Look at the top-right corner of the viewport for the small overlay of buttons. The shading button shows the current mode — Solid. Click it to cycle to Wire (click again for Unlit, again for Solid). At Wire the scene redraws as wireframe — useful for inspecting geometry without materials.

    The viewport in wireframe shading mode
    The shading button sits in the viewport's top-right overlay; click it to cycle Solid → Wire → Unlit.

  5. Switch to Unlit, then back to Solid. Keep clicking the same button to reach Unlit (base colors, no lighting) and then Solid (normal PBR shading). These are editor-only view overrides — they don’t change the scene data.

  6. Enter Play mode to run the scene. Press Play (works in the hosted editor and in local dev). The editor boots the real runtime and the game renders in the Game tab; the scene comes alive (physics, particles, animation).

    Play mode running the scene with the real game loop
    Play mode runs the actual engine runtime, not a preview (shown in the local dev editor).

  7. Stop Play mode and return to editing. Press Stop (or Escape). The runtime tears down and you’re back to editing the scene.

Recap

New functionality

  • Opened a .vscn scene in the editor
  • Selected entities from the hierarchy
  • Cycled solid / wireframe / unlit shading
  • Entered and exited play mode

New concepts & skills

  • Hierarchy rows are Three.js Object3Ds — selecting a row selects the entity
  • The inspector adapts to what an entity has (mesh vs light)
  • Shading modes are editor-only view overrides
  • Play mode runs the real engine runtime, not a preview

Next lesson → Foundations: The Object3D is the entity
