world2d — the 2D render surface

vgai renders through surfaces. The default is Three.js world3d (Object3Ds); the React HUD is a second; world2d is a third — a PixiJS v8 2D surface with Rapier 2D physics. The load-bearing idea: world2d reuses the same engine model — entities, the GameComponent lifecycle, and authored scene data — and only swaps what a node is (a PixiJS display object instead of an Object3D).

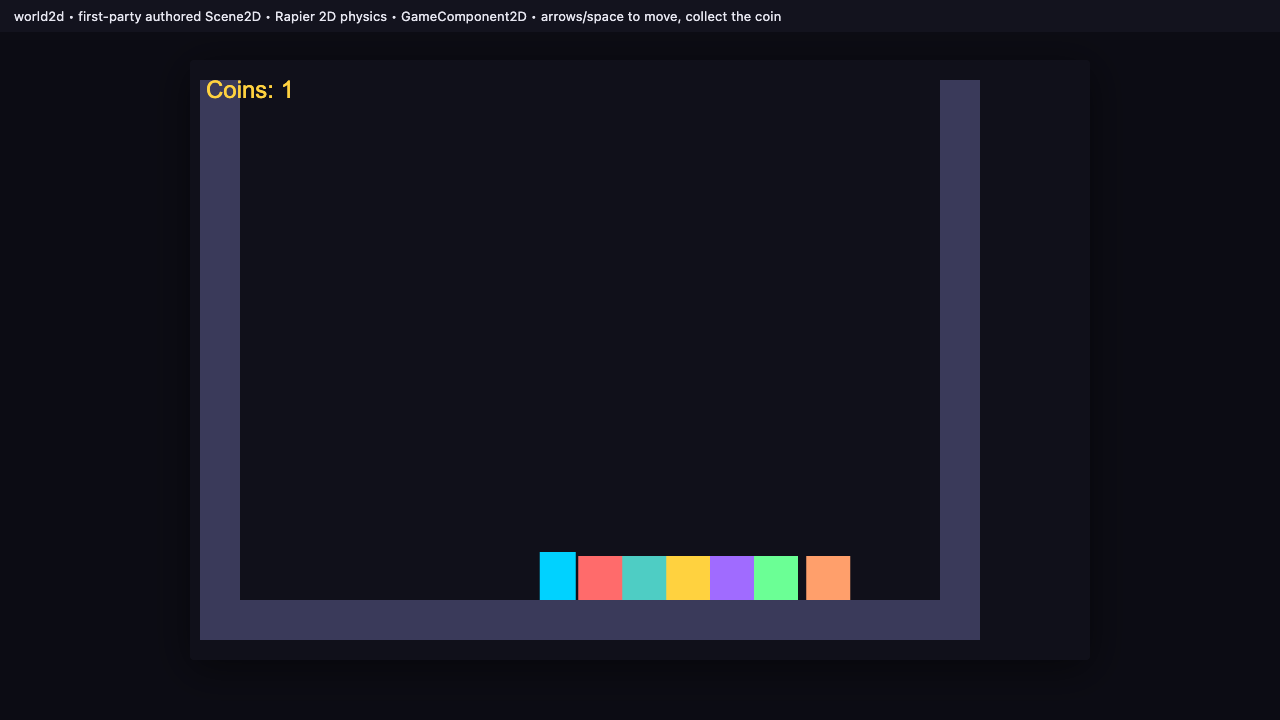

An authored Scene2D on world2d: Rapier-2D bodies, a GameComponent2D player, a coin HUD.

What it is

• Surface: a PixiJS Application driven by the engine’s shared SystemRunner / phase order (not Pixi’s own ticker) — so 2D systems run in the same phases as 3D.
• Entities & behavior: GameComponent2D has the same init / update / dispose (and trigger) lifecycle as the 3D GameComponent; gameplay code transfers directly.
• Scenes: authored as a Scene2DFile (the 2D analogue of .vscn), loaded into PixiJS display objects; a tilemap section maps to @pixi/tilemap.
• Physics: Rapier 2D (@dimforge/rapier2d-compat) in a separate world, with a 2D transform-writer and collision/trigger handling.

How to reach it

Dedicated page, not the 3D toolbar (yet)

world2d ships as packages/editor/world2d.html — a standalone surface page, not a button in the monolithic 3D editor. Run it via npm run dev (then open that path) or on the live build at world2d.html. Wiring it into the 3D editor’s toolbar is the documented remaining integration step. For a hands-on run, see Run a 2D game on world2d.

See also

• Run a 2D game on world2d · Rendering
